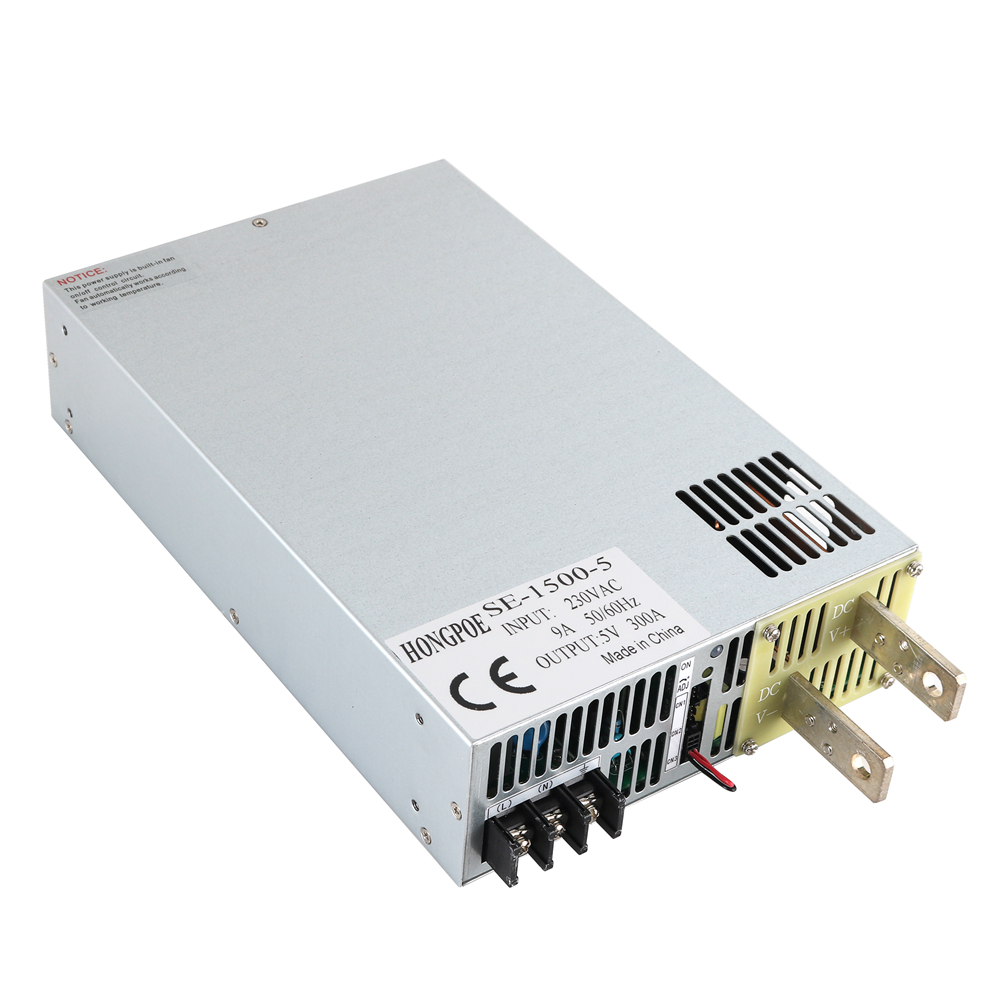

1500W 5V 300A Power Supply, 0–5V / 0–10V Analog & PLC & PWM Control 0–5V / 0–300A Adjustable N+1 Redundant Parallel, Remote ON/OFF function HONGPOE SE-1500-5

Model: SE-1500-5
Input Voltage: 110VAC/220VAC (Single Voltage Input)
Output Voltage: 5V
Output Current: 0-300A
Power: 1500W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details







SE-1500-5 Switching Power Supply

  • DC Output: 5V / 300A (1500W)

  • Control Features:

    1. Output Voltage Adjustment: 0–5V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–5V adjustable output

    3. Output Current Adjustment: 0–300A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–300A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
