HONGPOE 1500W Power Supply, 100V 15A, voltage and current fully adjustable 0–100V / 0–15A, with adjustable resistance 0–5V PWM/PLC analog control, ON/OFF, N+1 parallel capable

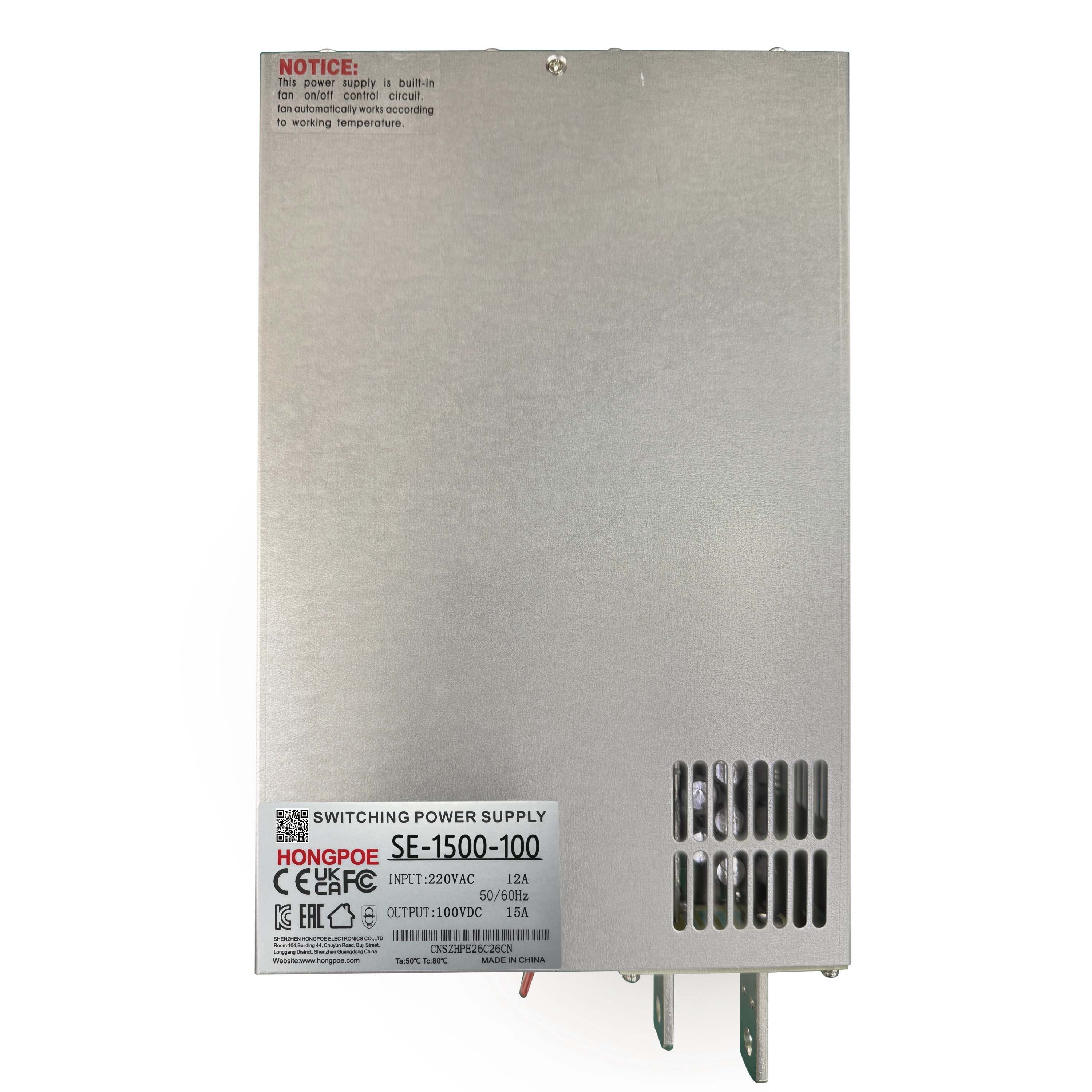

Model: SE-1500-100

Input Voltage: 110VAC/220VAC (Single Voltage Input)
Output Voltage: 100V
Output Current: 0-15A
Power: 1500W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details







SE-1500-100 Switching Power Supply

  • DC Output: 100V / 15A(1500W)

  • Control Features:

    1. Output Voltage Adjustment: 0–100V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–100V adjustable output

    3. Output Current Adjustment: 0–15A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–15A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
