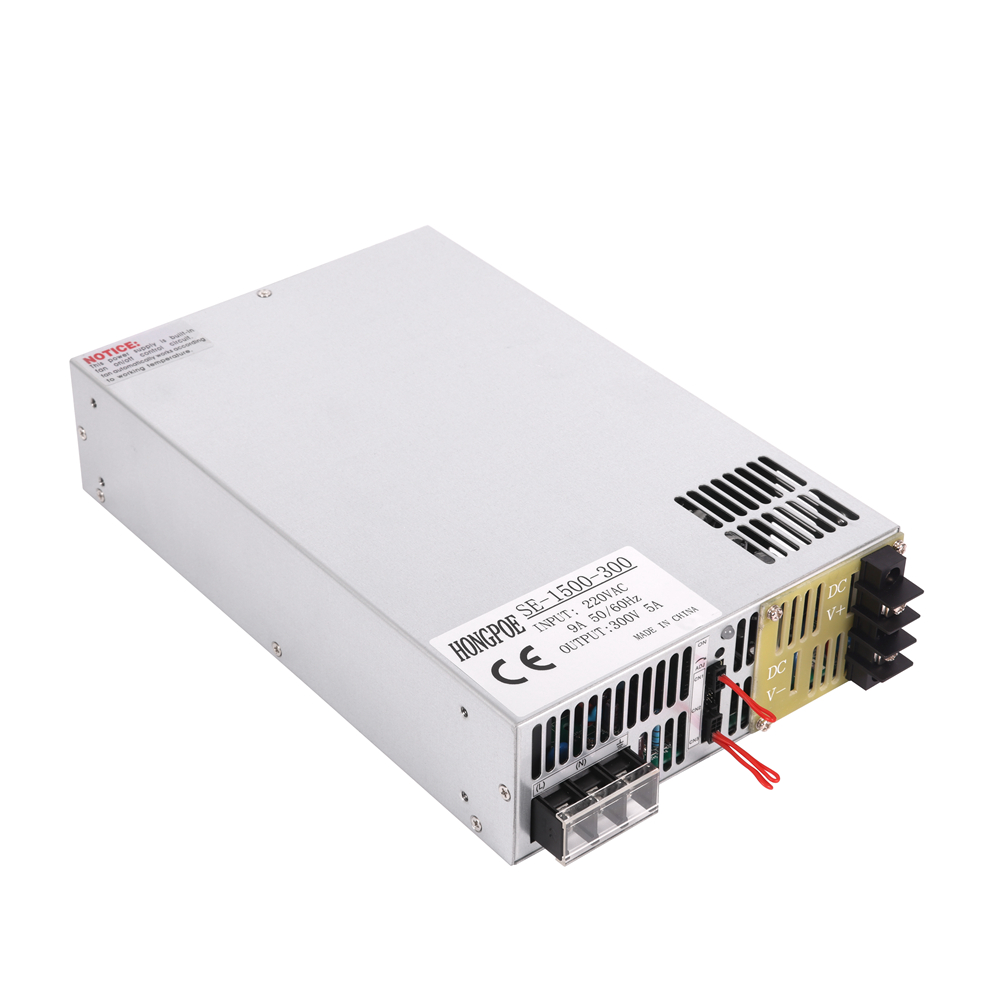

HONGPOE DC300V 1500W Switching Power Supply, output 0–300V adjustable, 0–5V PWM/PLC analog control, ON/OFF, N+1, SE-1500-300, 220VAC

Model: SE-1500-300

Input Voltage: 220VAC
Output Voltage: 300V
Output Current: 0-5A
Power: 1500W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details







SE-1500-300 Switching Power Supply

  • DC Output: 300V / 5A(1500W)

  • Control Features:

    1. Output Voltage Adjustment: 0–300V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–300V adjustable output

    3. Output Current Adjustment: 0–5A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–5A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
