HONGPOE Power Supply 1800W DC 68V, supports adjustable resistor 0-5V, PLC PWM control, output voltage 0-68V and current 0-26A, SE-1800-68

Model: SE-1800-68

Input Voltage: 110VAC/220VAC (Single Voltage Input)
Output Voltage: 68V
Output Current: 0-26A
Power: 1800W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details

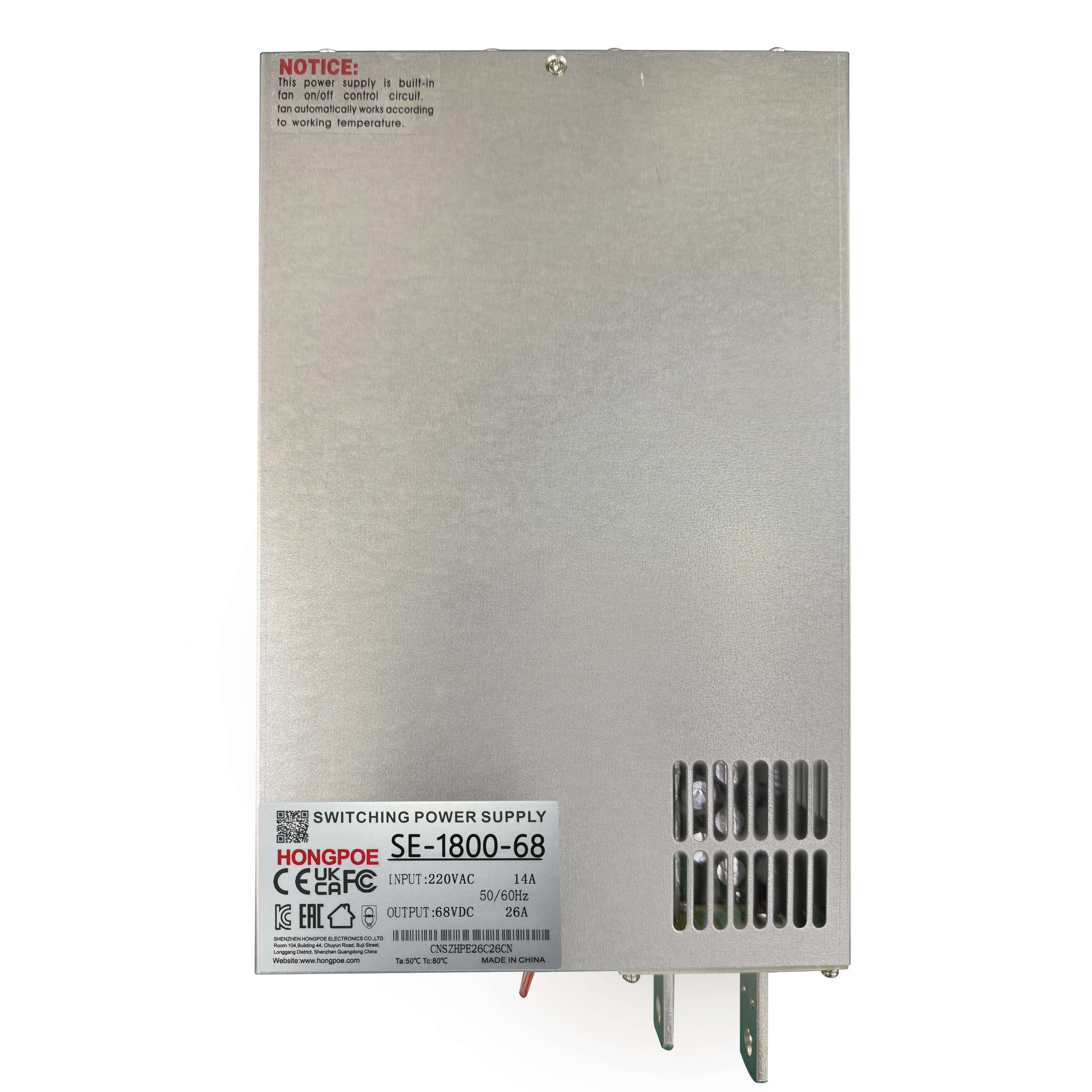

SE-1800-68 Switching Power Supply

  • DC Output: 68V / 26(1800W)

  • Control Features:

    1. Output Voltage Adjustment: 0–68V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–68V adjustable output

    3. Output Current Adjustment: 0–26A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–26A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
