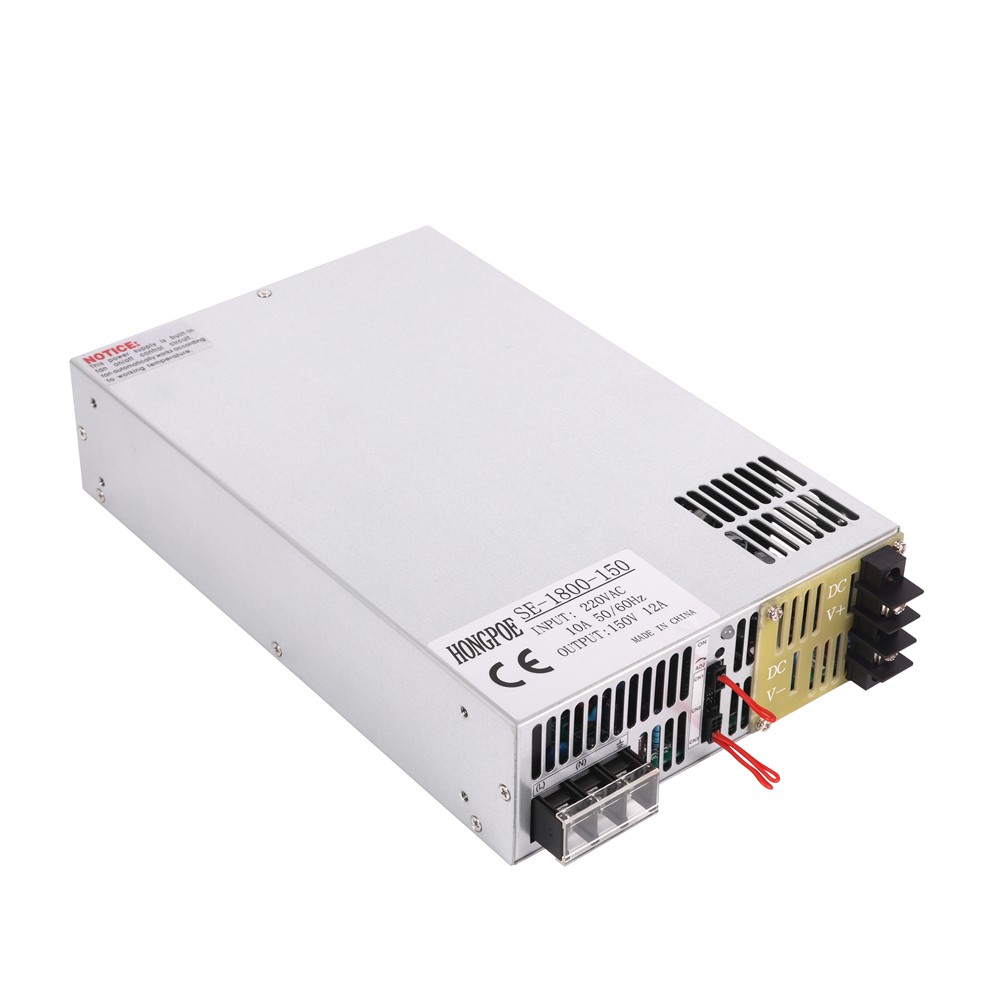

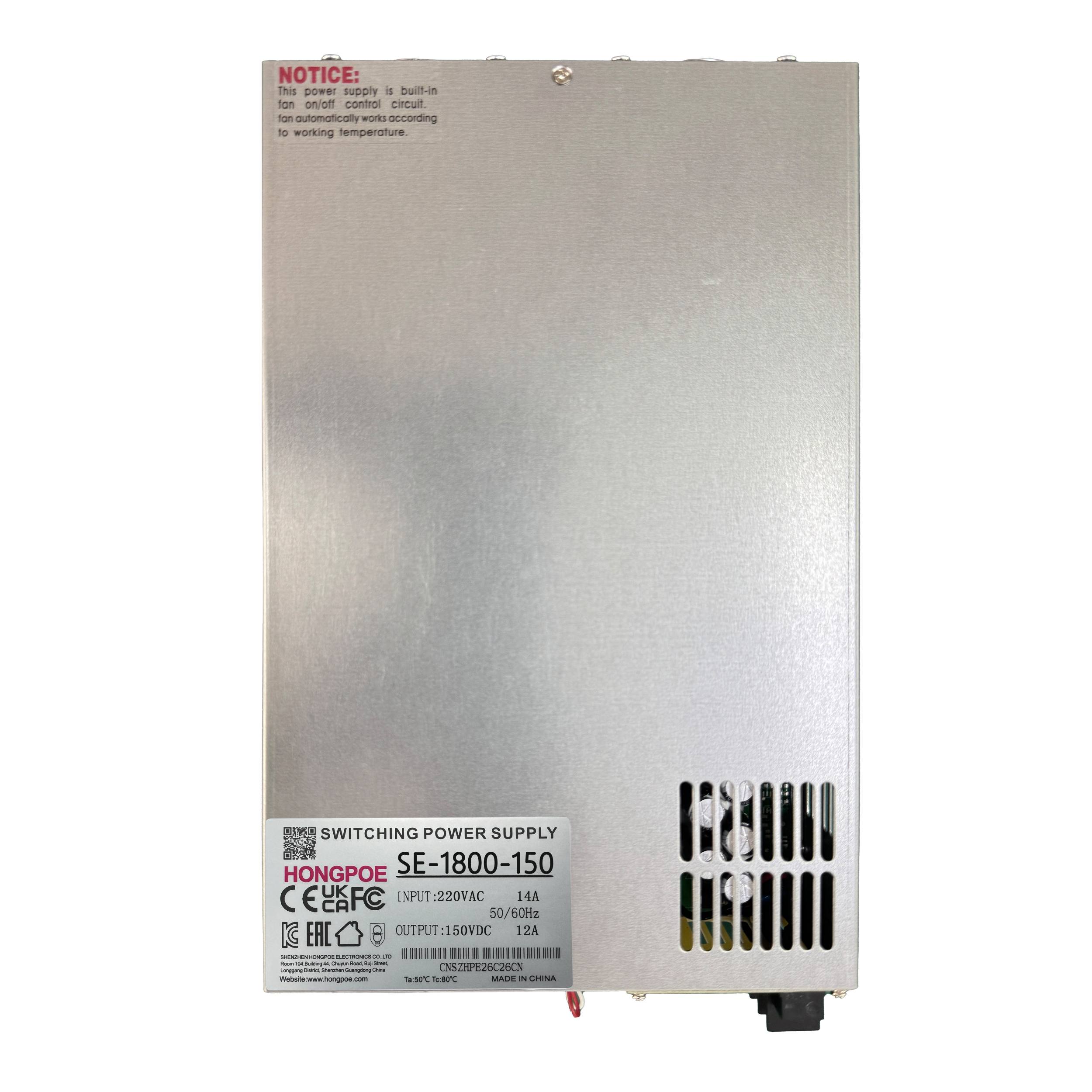

HONGPOE DC 150V 1800W Power Supply, voltage and current fully adjustable 0–150V / 0–12A, with adjustable resistance 0–5V PWM/PLC analog control, ON/OFF, SE-1800-150, 220VAC

Model: SE-1800-150

Input Voltage: 220VAC
Output Voltage: 150V
Output Current: 0-12A
Power: 1800W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details







SE-1800-150 Switching Power Supply

  • DC Output: 150V / 12A(1800W)

  • Control Features:

    1. Output Voltage Adjustment: 0–150V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–150V adjustable output

    3. Output Current Adjustment: 0–12A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–12A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
