HONGPOE 2500W 27V 92A DC power supply, supports adjustable resistor, 0-5V, PLC, PWM analog signal control for output voltage 0-27V and current 0-92A, N+1 redundancy, ON/OFF

Model: SE-2500-27

Input Voltage: 110VAC/220VAC (Single Voltage Input)
Output Voltage: 27V
Output Current: 0-92A
Power: 2500W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details

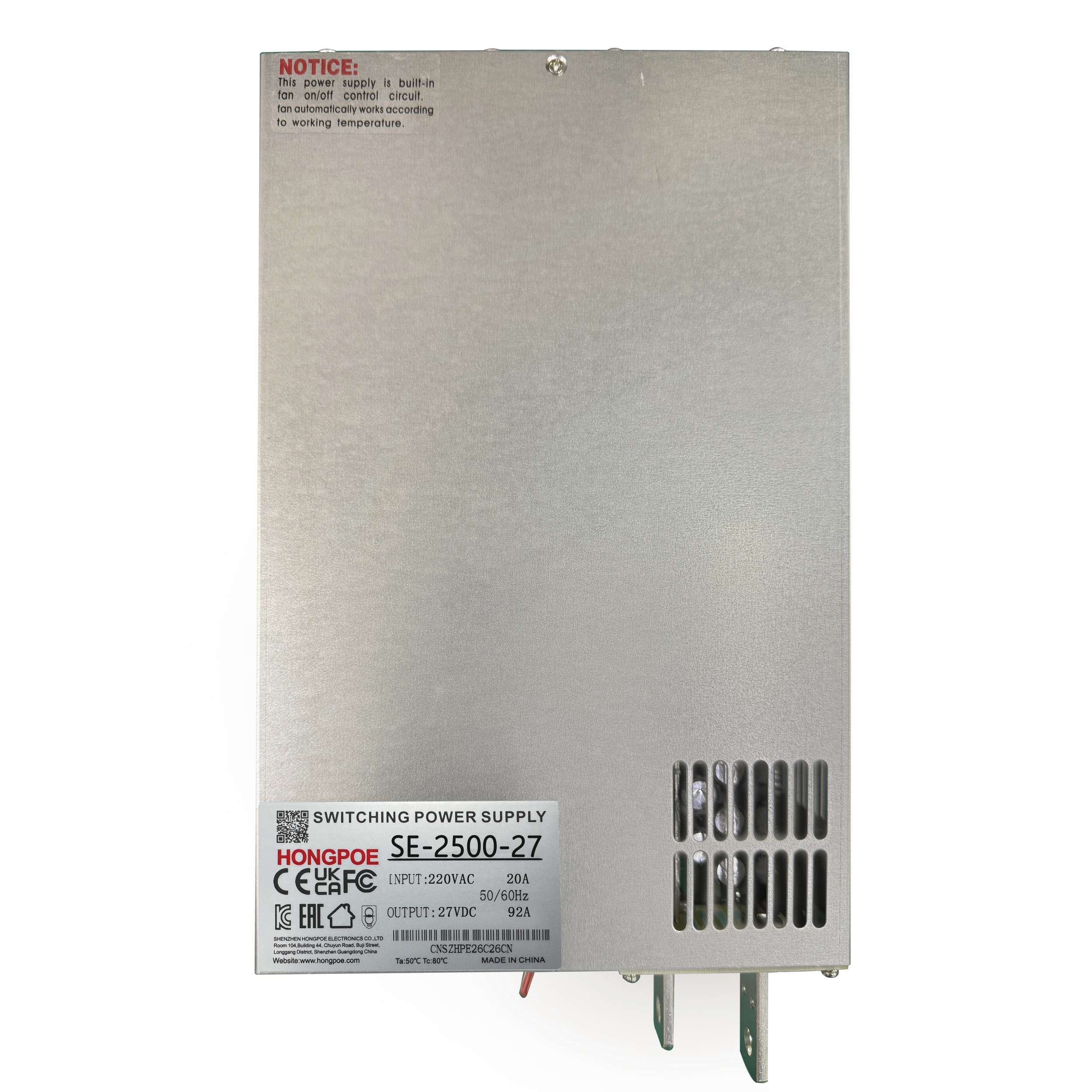

SE-2500-27 Switching Power Supply

  • DC Output: 27V / 92A (2500W)

  • Control Features:

    1. Output Voltage Adjustment: 0–27V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–27V adjustable output

    3. Output Current Adjustment: 0–92A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–92A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
