HONGPOE DC power supply 15V 3000W, adjustable resistor, 0-5V, PWM, PLC analog control. Output voltage (0-15V) and current (0-200A). ON/OFF, N+1

Model: SE-3000-15

Input Voltage: 220VAC
Output Voltage: 15V
Output Current: 0-200A
Power: 3000W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details

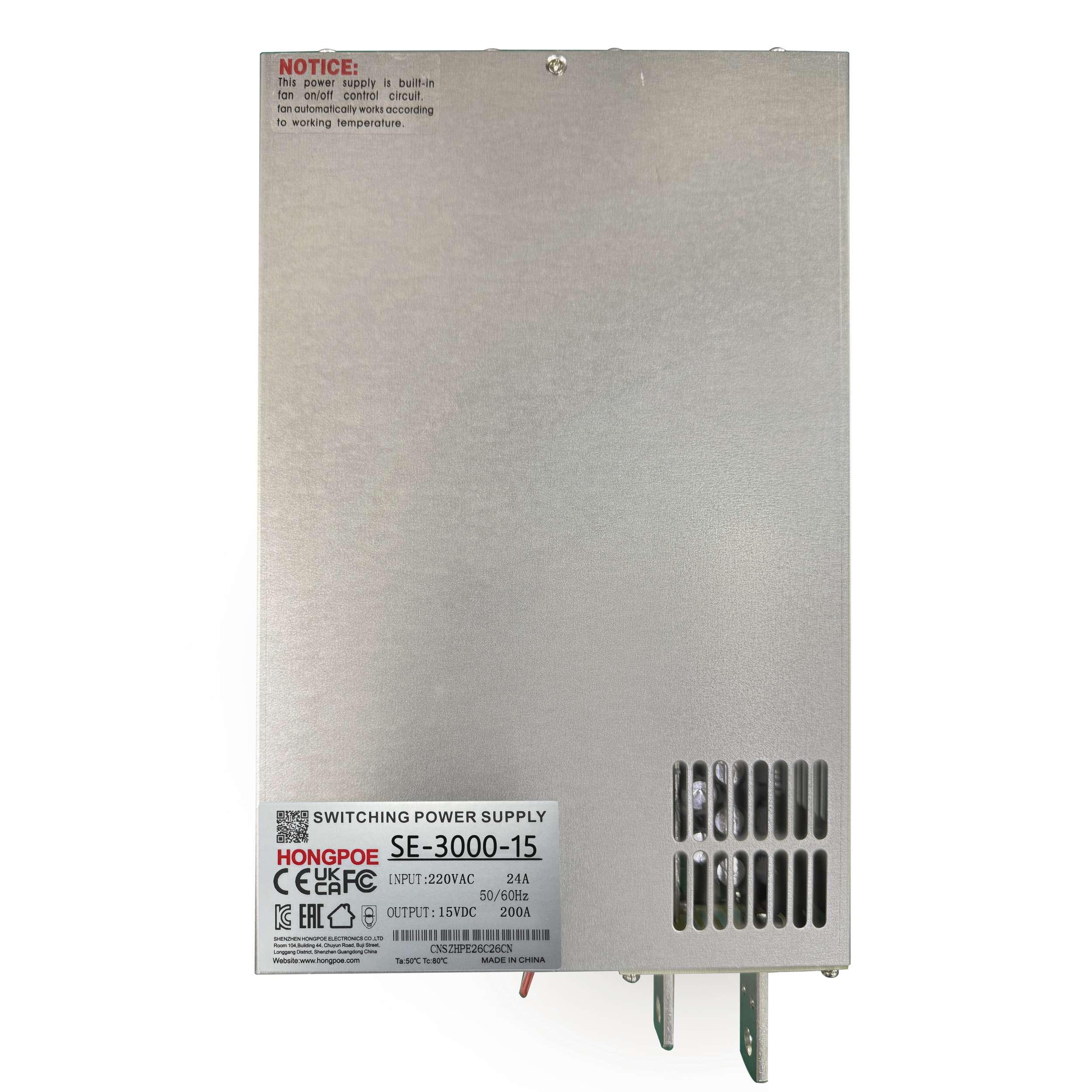

SE-3000-15 Switching Power Supply

  • DC Output: 15V / 200A (3000W)

  • Control Features:

    1. Output Voltage Adjustment: 0–15V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–15V adjustable output

    3. Output Current Adjustment: 0–200A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–200A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
