HONGPOE 3000W DC Power Supply 30V 100A Variable, 0-5V Analog PLC PWM Control, Adjustable Voltage 0-30V & Current 0-100A with N+1 Parallel & ON/OFF Switch

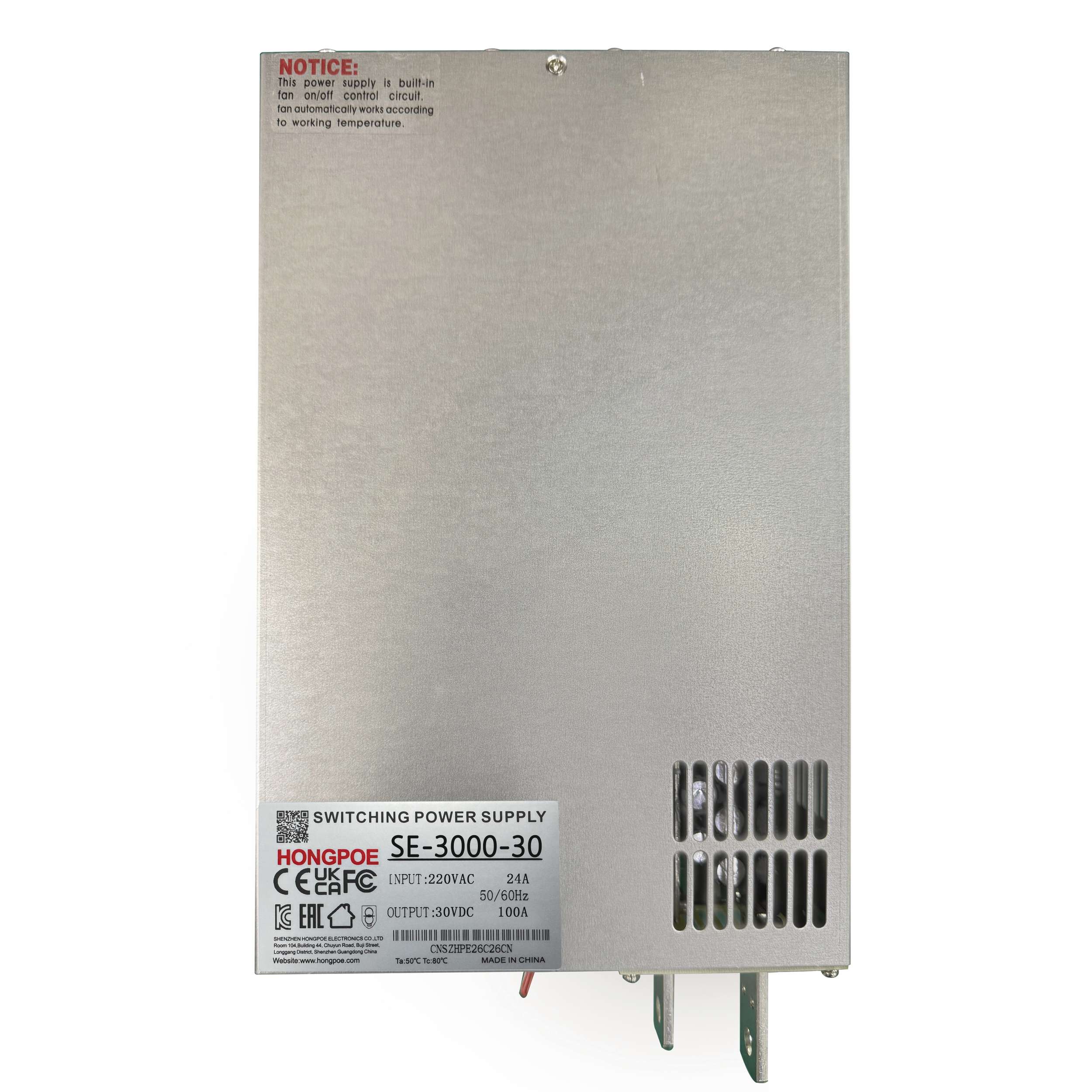

Model: SE-3000-30

Input Voltage: 220VAC
Output Voltage: 30V
Output Current: 0-100A
Power: 3000W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details







SE-3000-30 Switching Power Supply

  • DC Output: 30V / 100A (3000W)

  • Control Features:

    1. Output Voltage Adjustment: 0–30V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–30V adjustable output

    3. Output Current Adjustment: 0–100A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–100A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
