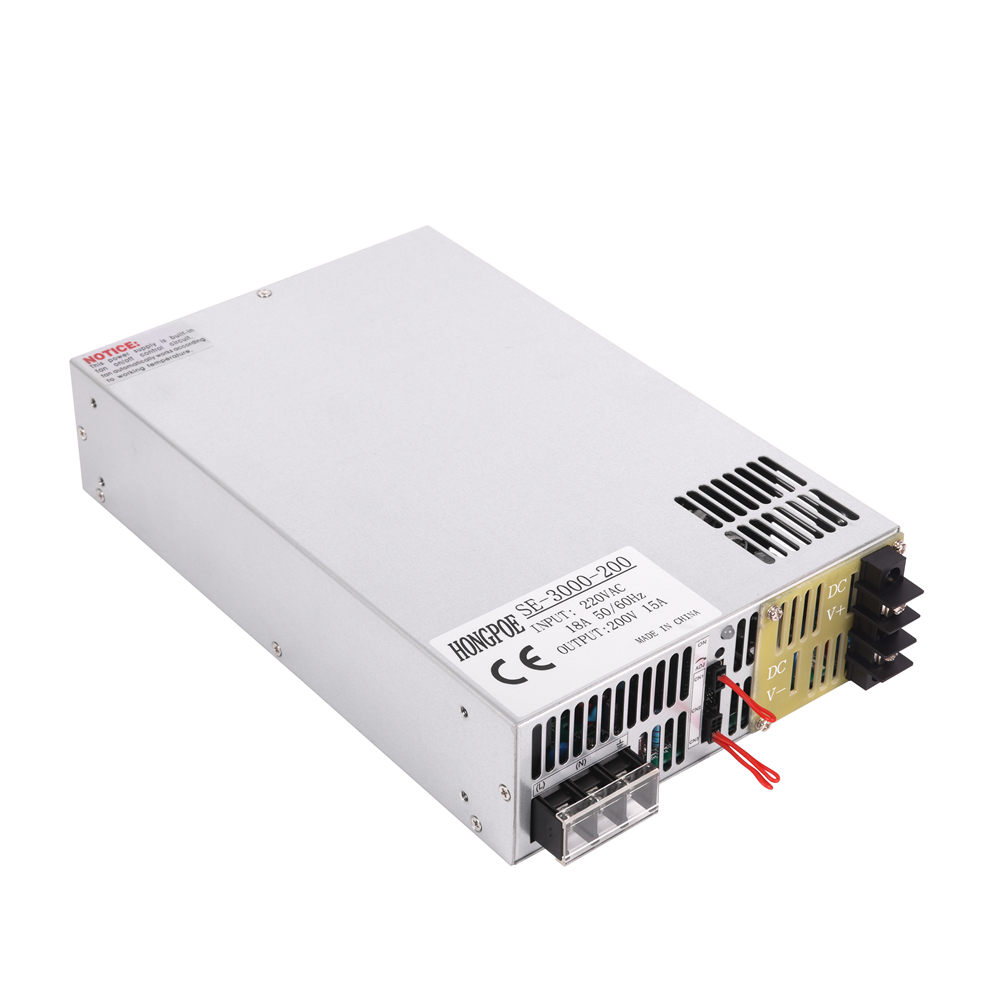

HONGPOE 3000W DC Power Supply 200V 15A Variable, Potentiometer, 0-5V, PLC, PWM Analog Control, 0-200V & 0-15A Adjustable Output, for Industrial Control, Lighting, Electroplating, Motor, New Energy

Model: SE-3000-200

Input Voltage: 220VAC
Output Voltage: 200V
Output Current: 0-15A
Power: 3000W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details

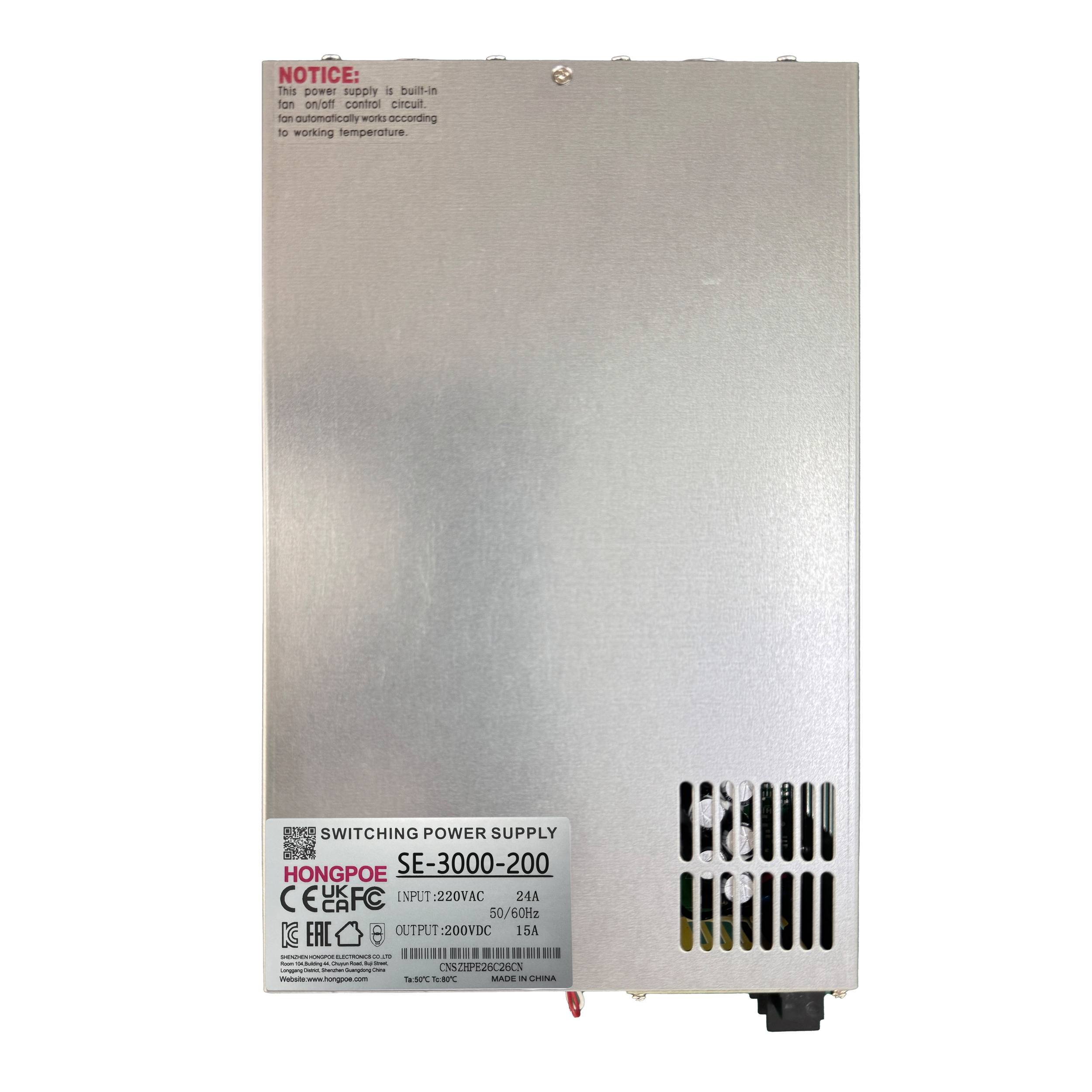

SE-3000-200 Switching Power Supply

  • DC Output: 200V / 15A(3000W)

  • Control Features:

    1. Output Voltage Adjustment: 0–200V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–200V adjustable output

    3. Output Current Adjustment: 0–15A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–15A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
