HONGPOE DC 3500W Power Supply 150V 23A Variable, Potentiometer, 0-5V, PLC, PWM Analog Control, 0-150V & 0-23A Adjustable Output, for Industrial Control, Lighting, Electroplating, Motor, New Energy

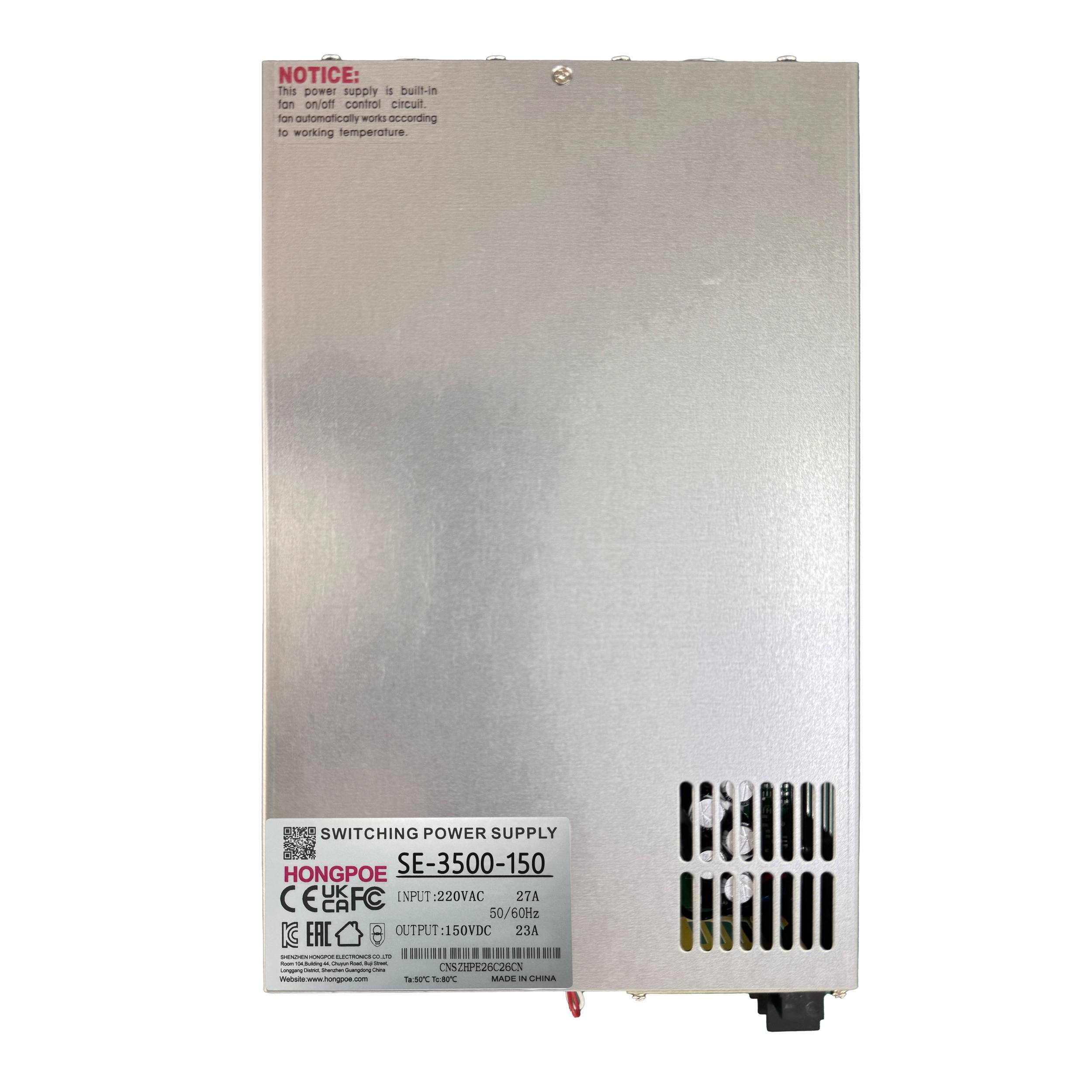

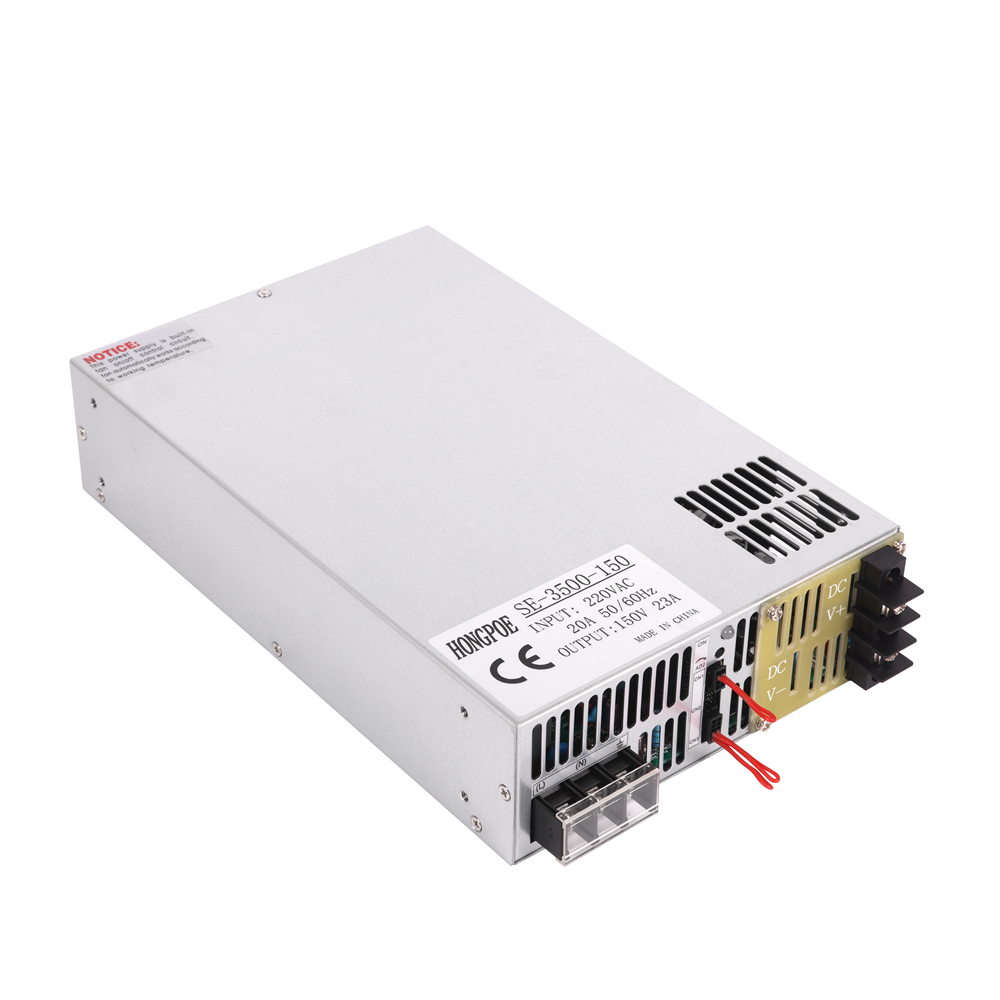

Model: SE-3500-150

Input Voltage: 220VAC
Output Voltage: 150V
Output Current: 0-23A
Power: 3500W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details







SE-3500-150 Switching Power Supply

  • DC Output: 150V / 23A(3500W)

  • Control Features:

    1. Output Voltage Adjustment: 0–150V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–150V adjustable output

    3. Output Current Adjustment: 0–23A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–23A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
