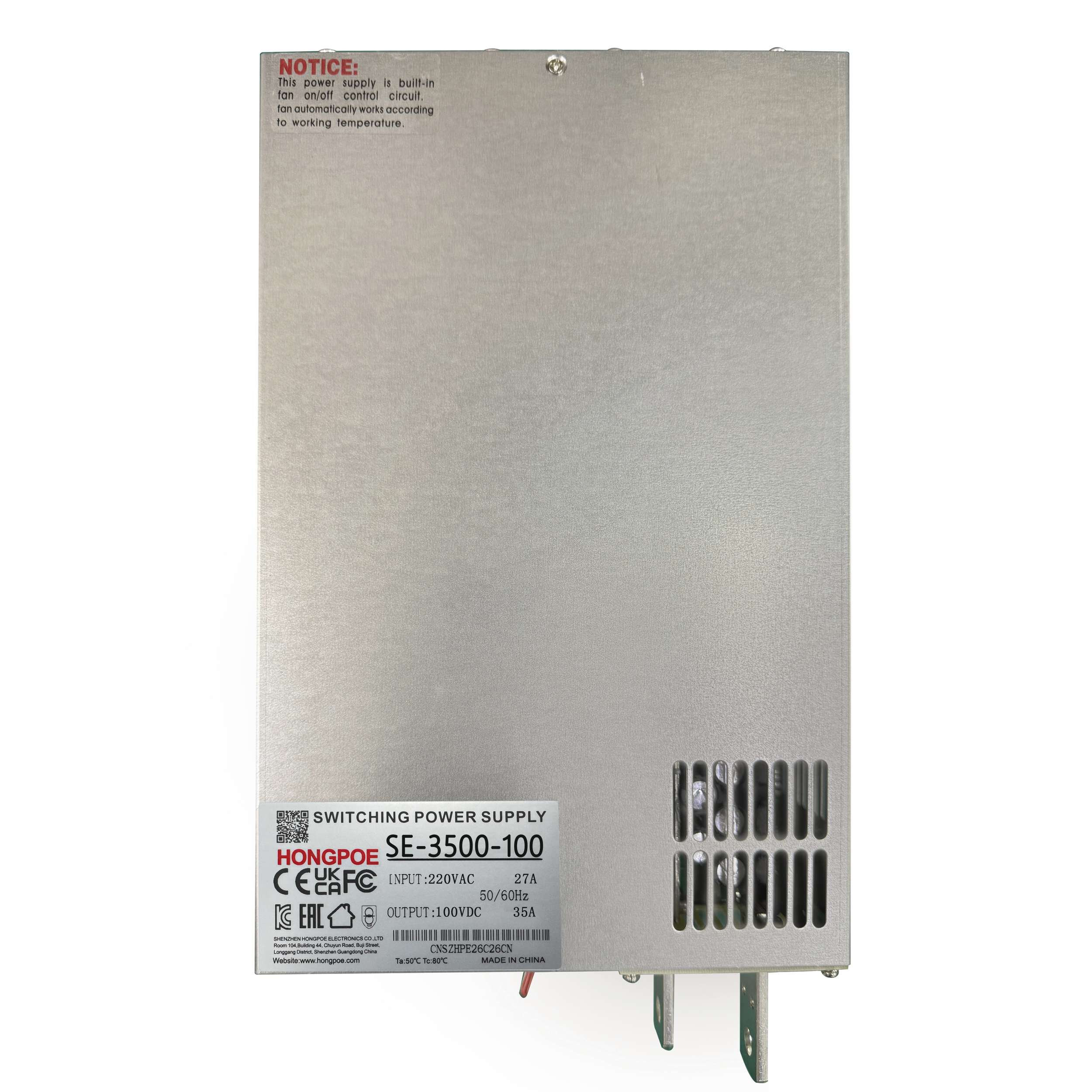

HONGPOE Adjustable DC Power Supply 3500W 100V 35A, 0-5V PLC PWM Potentiometer Control, Output 0-100V 0-35A, for Industrial, Lighting, Plating, Motor, New Energy

Model: SE-3500-100

Input Voltage: 220VAC
Output Voltage: 100V
Output Current: 0-35A
Power: 3500W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details







SE-3500-100 Switching Power Supply

  • DC Output: 100V / 35A(3500W)

  • Control Features:

    1. Output Voltage Adjustment: 0–100V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–100V adjustable output

    3. Output Current Adjustment: 0–35A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–35A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
