HONGPOE 3500W DC Power Supply 60V 58A Adjustable, Potentiometer, 0-5V, PLC, PWM Analog Control, Voltage 0-60V & Current 0-58A Variable, N+1 Parallel, Remote ON/OFF

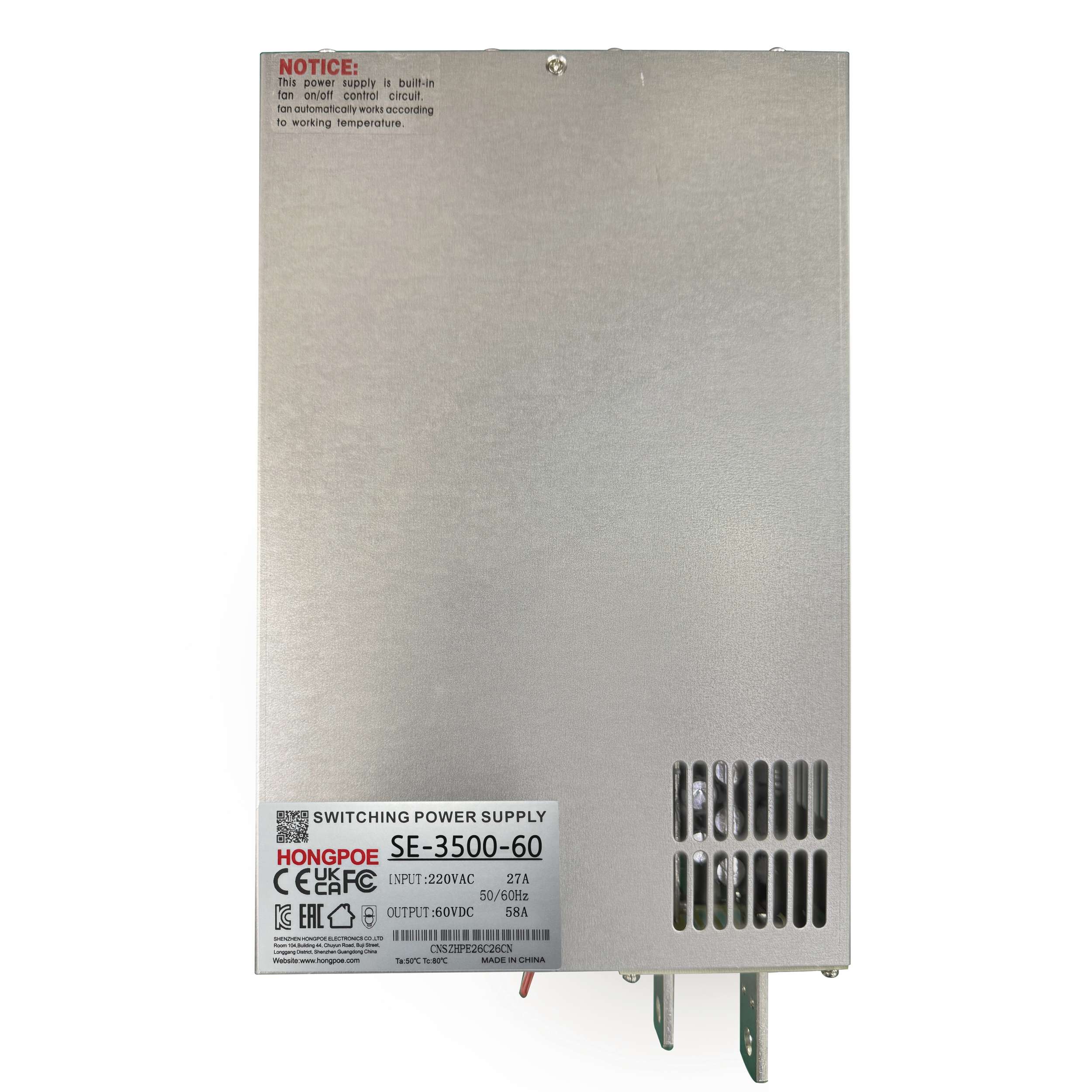

Model: SE-3500-60

Input Voltage: 220VAC
Output Voltage: 60V
Output Current: 0-58A
Power: 3500W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details







SE-3500-60 Switching Power Supply

  • DC Output: 60V / 58A (3500W)

  • Control Features:

    1. Output Voltage Adjustment: 0–60V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–60V adjustable output

    3. Output Current Adjustment: 0–58A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–58A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
