HONGPOE 3500W 24V 145A DC power supply, supports adjustable resistor, 0-5V, PLC, PWM analog signal control, output voltage 0-24V, current 0-145A, N+1 redundancy, remote on/off function

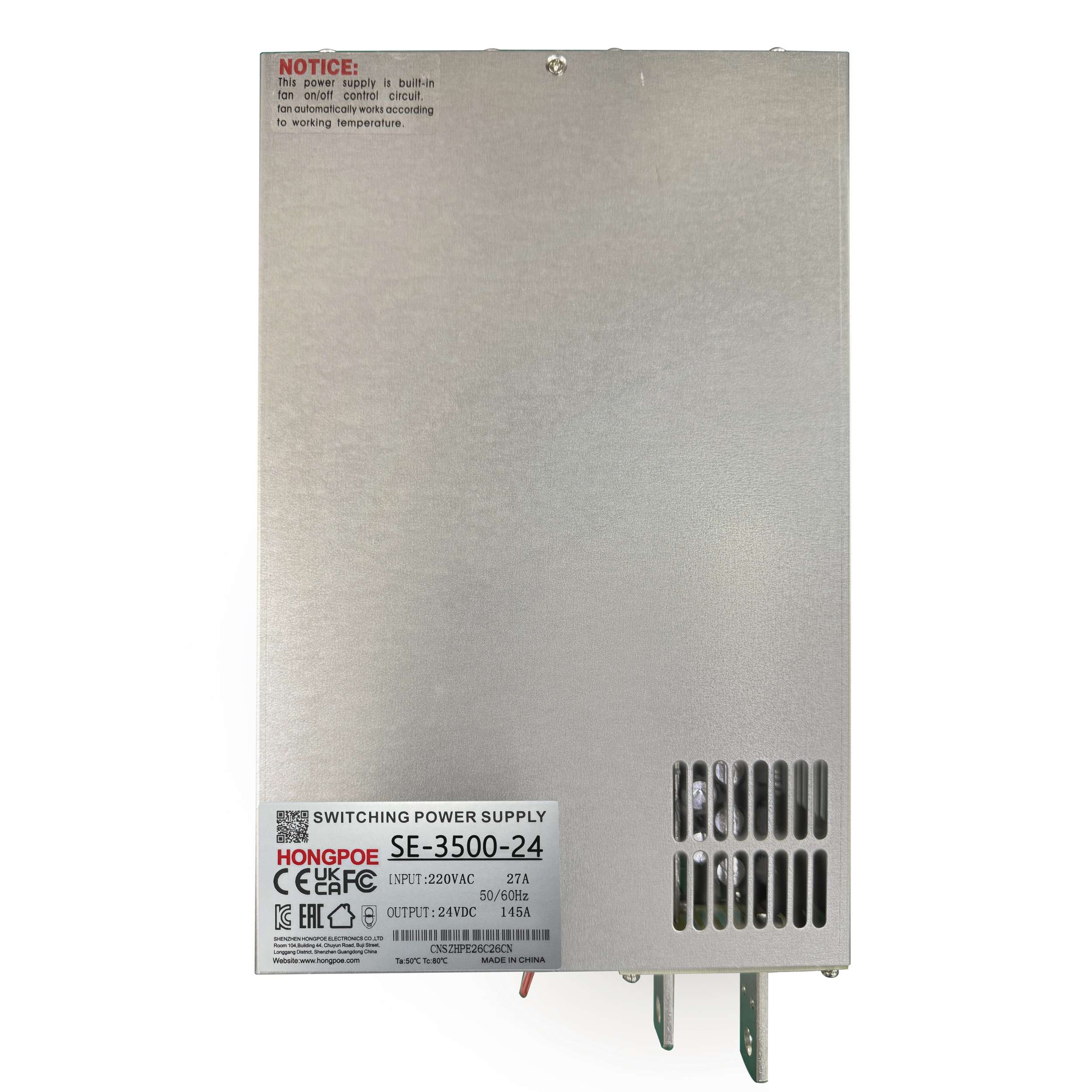

Model: SE-3500-24

Input Voltage: 220VAC
Output Voltage: 24V
Output Current: 0-145A
Power: 3500W
Frequency: 50/60Hz
Dimensions: 280 x 180 x 65 mm
Certifications: CE, KC, EAC, ROHS, LVD, DOE

Details







SE-3500-24 Switching Power Supply

  • DC Output: 24V / 145A (3500W)

  • Control Features:

    1. Output Voltage Adjustment: 0–24V continuously adjustable via external potentiometer

    2. Remote Output Voltage Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–24V adjustable output

    3. Output Current Adjustment: 0–145A continuously adjustable via external potentiometer

    4. Remote Output Current Control: Supports 0–5V/0–10V analog signal, PLC, or PWM signal for 0–145A adjustable output

    5. Remote ON/OFF: Built-in ON/OFF control interface

    6. N+1 Parallel Redundancy: Supports multiple units in parallel for redundancy and power expansion
