HONGPOE 500W 36V Digital Adjustable Switching Power Supply | AC 110V/220V to DC 0-36V 16.5A AC/DC Transformer MS-500-36 | For LED Lights, Laboratory Testing, Motor, 3D Printer, LiFePO4 Battery Charger

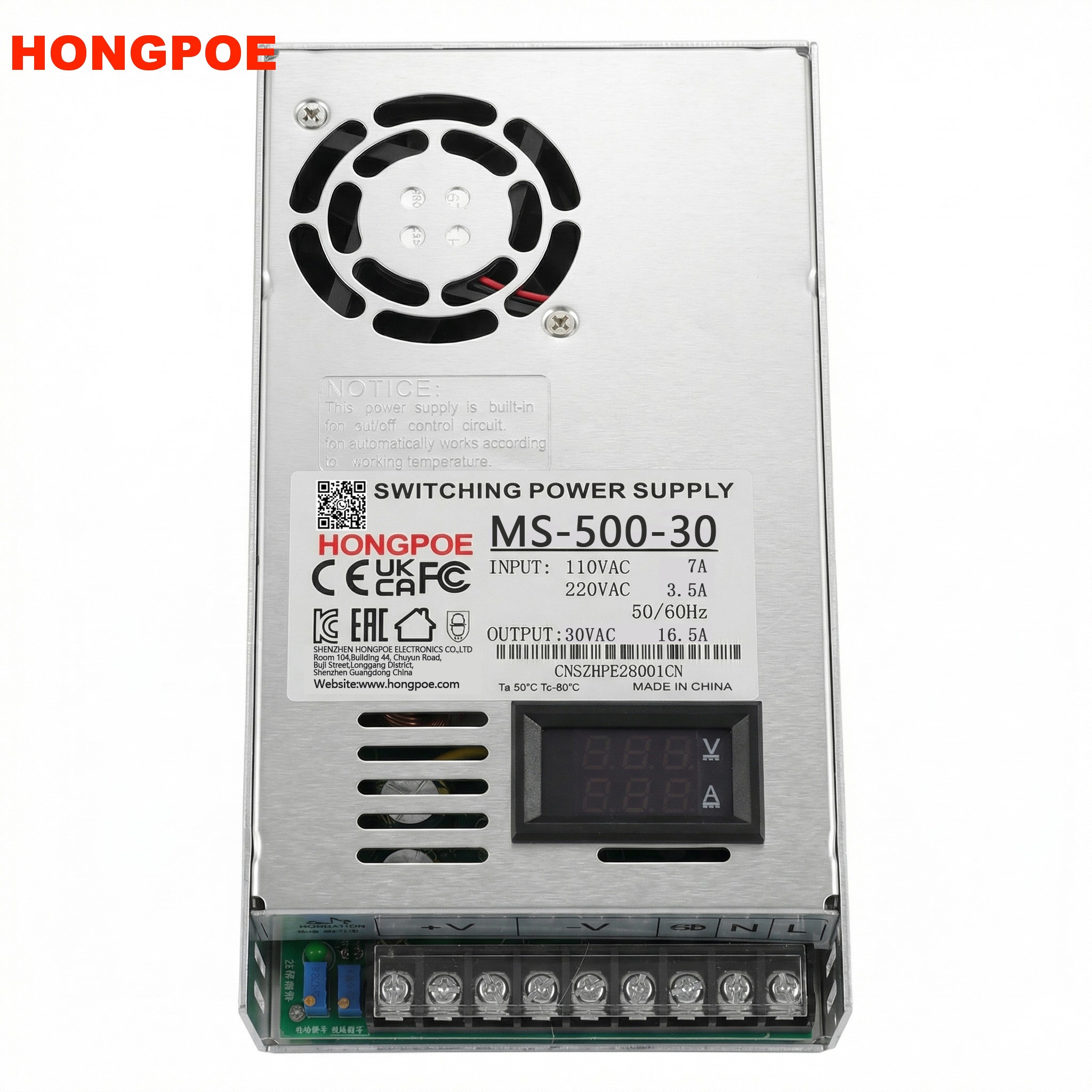

Model: MS-500-30 Switching Power Supply

DC Output

• Voltage: 30V

• Current: 16.5A

• Power: 500W

Control Features

• Output voltage adjustment: 0–30V continuously adjustable via on‑board potentiometer (502)

• Output current adjustment: 2–16.5A continuously adjustable via on‑board potentiometer (502)

Switching Power Supply Characteristics

• Wide input voltage: Supports AC 85‑132V / 170‑264V (auto/manual switch), compatible with global grids.

• Multiple protections: Built‑in short circuit, overload, overvoltage, overtemperature protection; auto‑recovery after fault removal.

• Low ripple & noise: Integrated EMI filter, output ripple ≤200mV, low interference for sensitive equipment.

• High efficiency: Efficiency ≥85% (up to 91% for high‑end models), low heat generation.

• Full certifications: CE, EAC, KC, FCC, UKCA, RoHS, LVD, etc.

Main Applications

• LED lighting (strips, modules, signage, displays)

• CCTV (cameras, recorders, access controllers)

• Industrial automation (PLC, sensors, robots, CNC)

• 3D printing / CNC (heated beds, spindle motors, stepper motors)

• New energy & charging (on‑board power, chargers, LiFePO₄ battery packs)

• R&D & labs (adjustable supply for testing, teaching)

• Communication equipment (base stations, switches, routers)

• Special equipment (thermoelectric coolers/heaters, air purifiers, electronic fridges)
