SE-3000 Series Product Catalog
Browse all standard output voltage versions of the SE-3000 series. Click any voltage to view the full SE-3000 technical specifications.
红博 SE-3000 Series 3000W DC Power Supply Catalog
Supported Control Functions

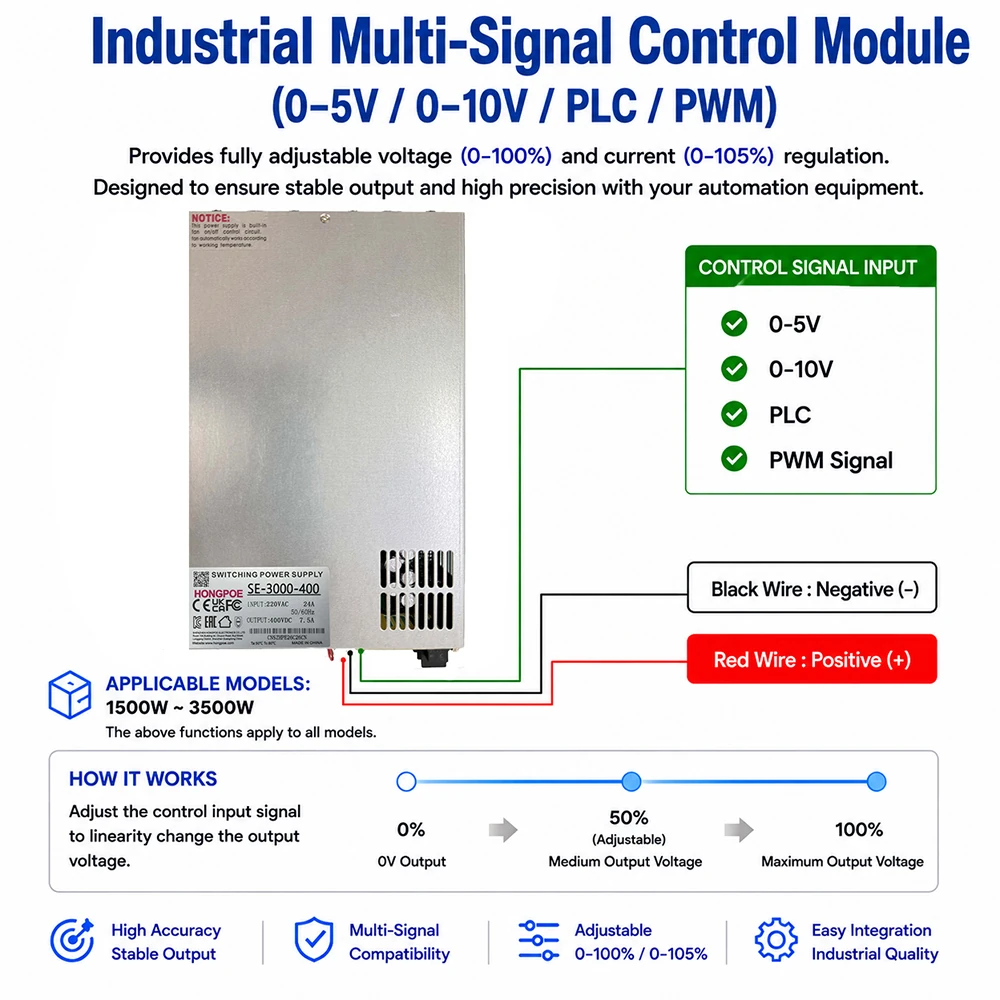

- Output Voltage Adjustment: Adjustable via a manual potentiometer, 0–5V analog signal, PLC, or PWM signal, providing 0–100% linear output adjustment.
- Output Current Adjustment: Adjustable via a manual potentiometer, 0–5V analog signal, PLC, or PWM signal, providing 0–105% linear adjustment of the rated output current.
- Remote ON/OFF: Built-in remote ON/OFF control interface for convenient system integration.

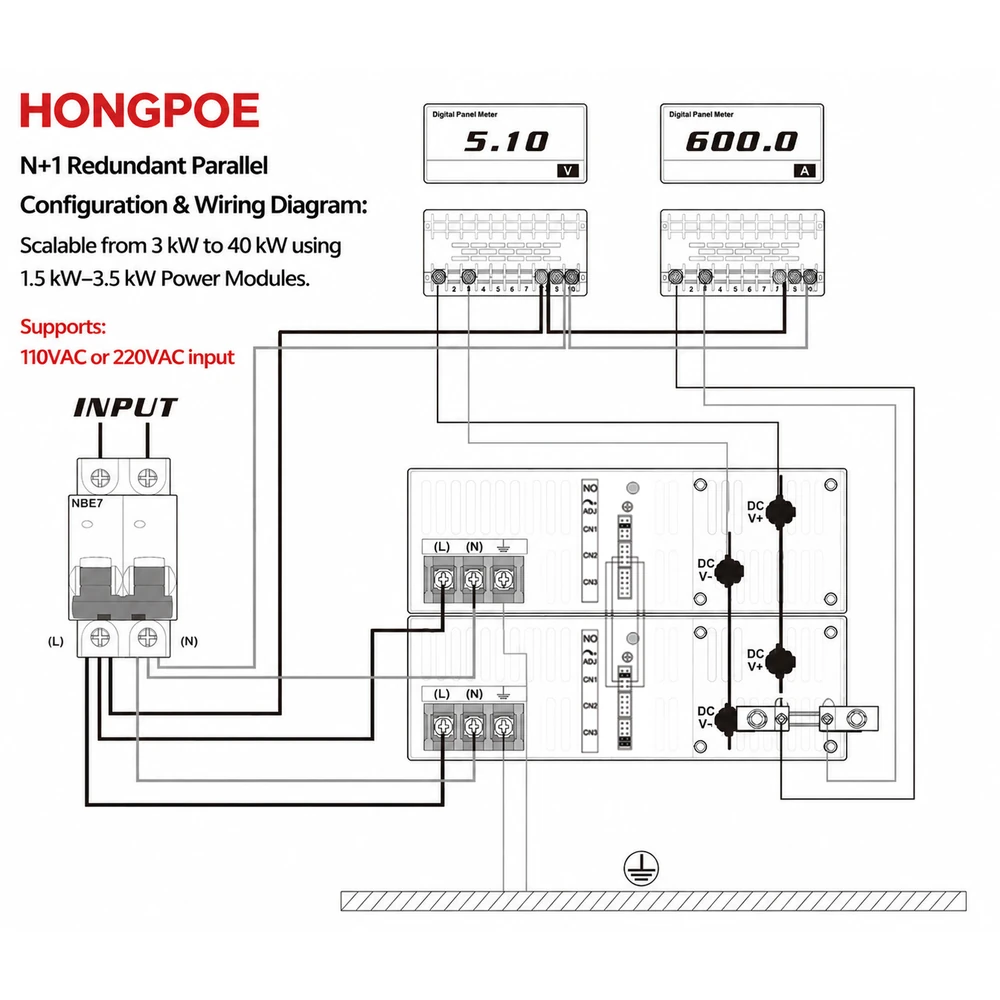

- N+1 Parallel Redundancy: Supports multiple power supplies in parallel for redundant operation, increased system capacity, and enhanced power availability.
You will be redirected to our official online store www.hongpoepower.com to complete your order and secure payment.
SE-3000 Output Voltage Options
Select an output voltage configuration to view the full SE-3000 specifications.
20 standard output voltage options · 12V · 15V · 24V · 27V · 30V · 36V · 48V · 60V · 68V · 72V · 85V · 90V · 100V · 110V · 150V · 200V · 250V · 300V · 350V · 400VDC
SE-3000 Series Key Specifications
| Model | SE-3000 |
|---|---|
| Rated Power | 3000W |
| AC Input | 110VAC or 220VAC, single-voltage input |
| Output Voltage | 12–30V / 36–72V / 85–200V / 250–400V DC |
| Output Current | 7.5A–250A |
| Efficiency | 86%–91% |
| Control Methods | 0–5V · PWM · PLC · ON/OFF |
| Voltage Adjustment | 0–100% |
| Current Adjustment | 0–105% |

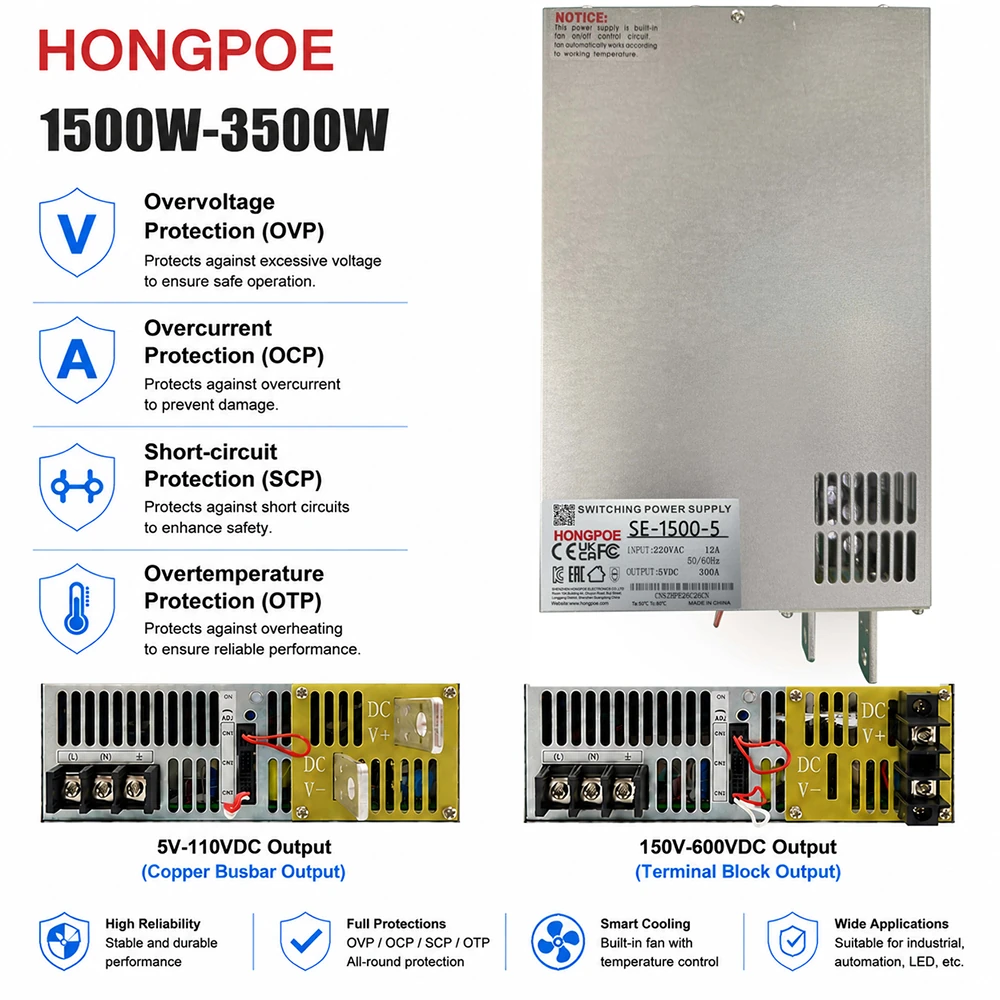

| Protection | OVP · OCP · SCP · OTP |
| Cooling | Forced-air cooling |
| Dimensions | 280 × 180 × 65 mm |
| Weight | 3.9 kg |
| Operating Temperature | -15°C to 65°C |
Main Applications
Industrial Automation & Machinery
PLCs, robotics, CNC equipment, motors, sensors, actuators, and industrial control systems.
New Energy & Battery Systems
Battery charging, LiFePO4 battery packs, charging equipment, and energy storage systems.
LED Lighting & Display
LED strips, LED modules, advertising displays, and high-power LED equipment.
Testing & R&D
Engineering testing, laboratory equipment, product development, education, and system verification.
Telecom & Specialized Equipment
Telecom equipment, surveillance systems, Peltier systems, refrigeration equipment, and other high-power DC applications.
