SE-7000 Series Product Catalog

Browse all standard output voltage versions of the SE-7000 series.

7000W110VAC or 220VAC, single-voltage inputOutput: 12–30V / 36–72V / 85–200V / 250–400V DC

SE SERIES

红博 SE-7000 Series 7000W DC Power Supply Catalog

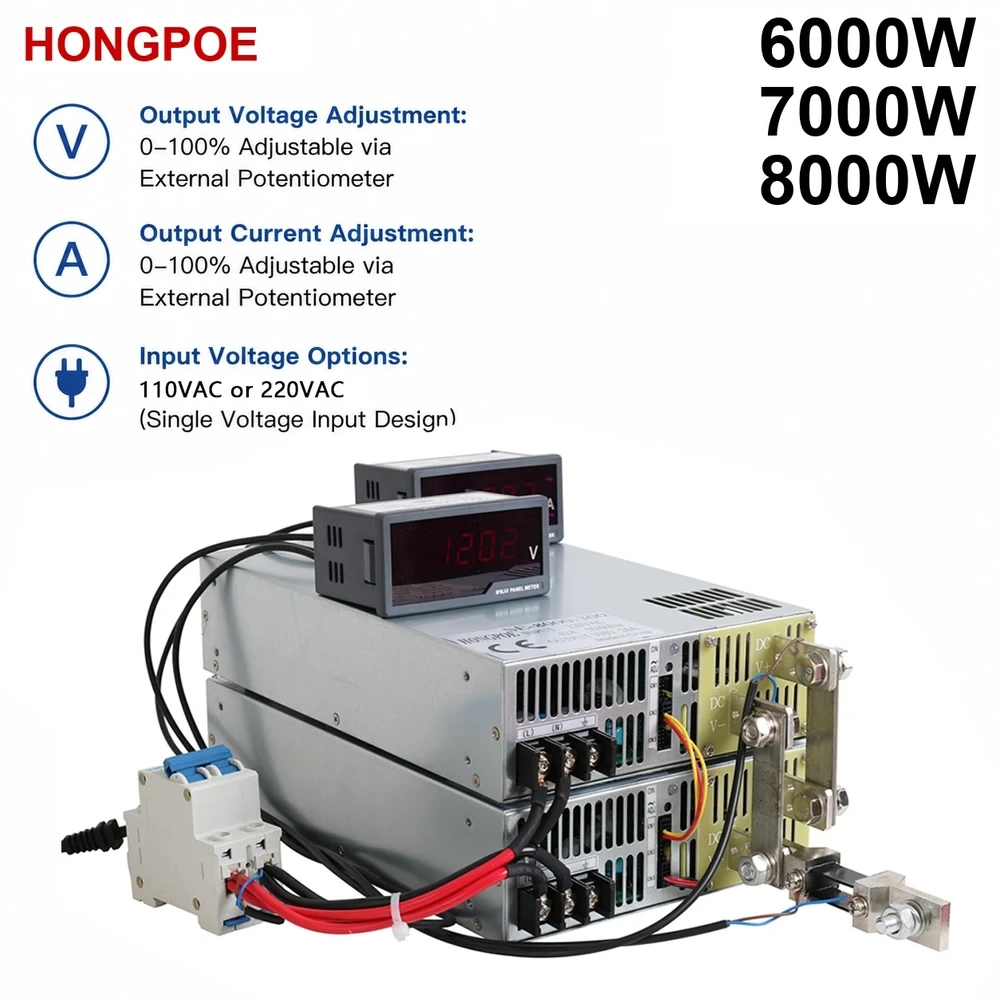

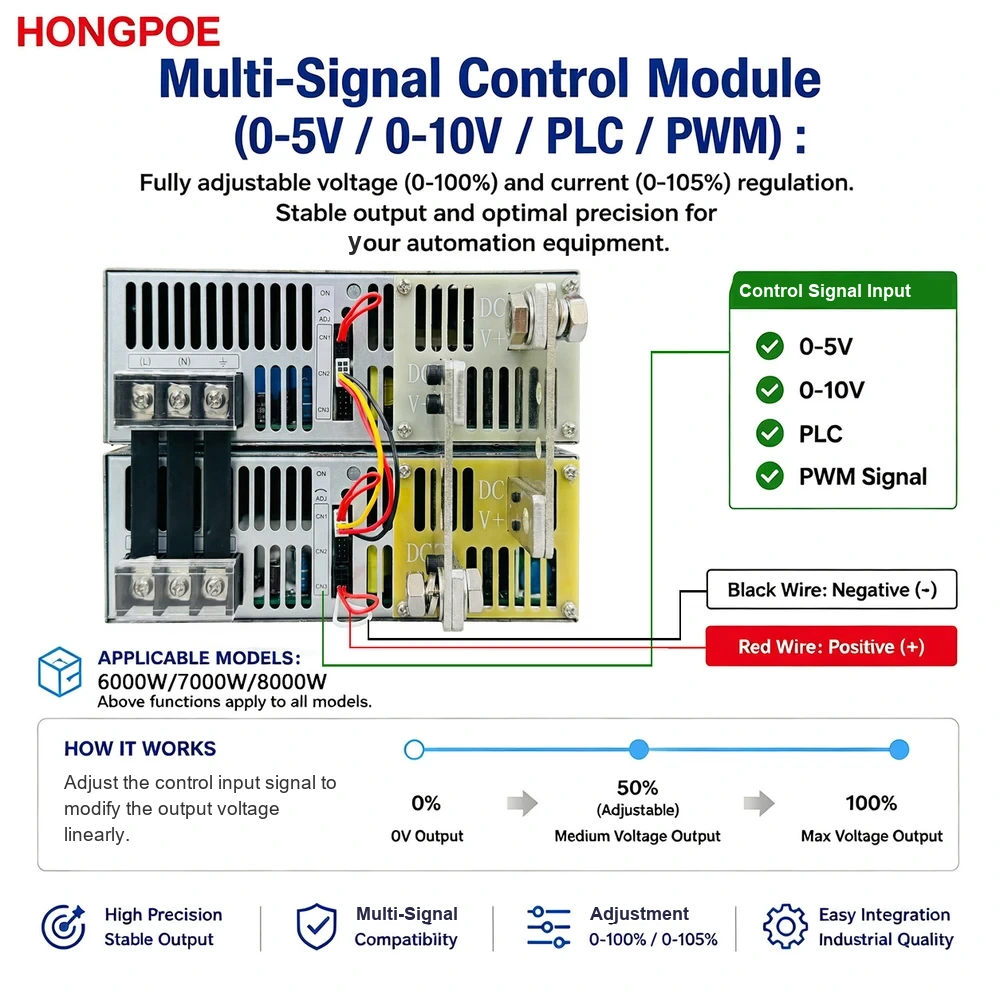

Output Voltage Adjustment: Adjustable via a manual potentiometer, 0–5V analog signal, PLC, or PWM signal.
Output Current Adjustment: Adjustable via a manual potentiometer, 0–5V analog signal, PLC, or PWM signal.
Remote ON/OFF: Built-in remote ON/OFF control interface.

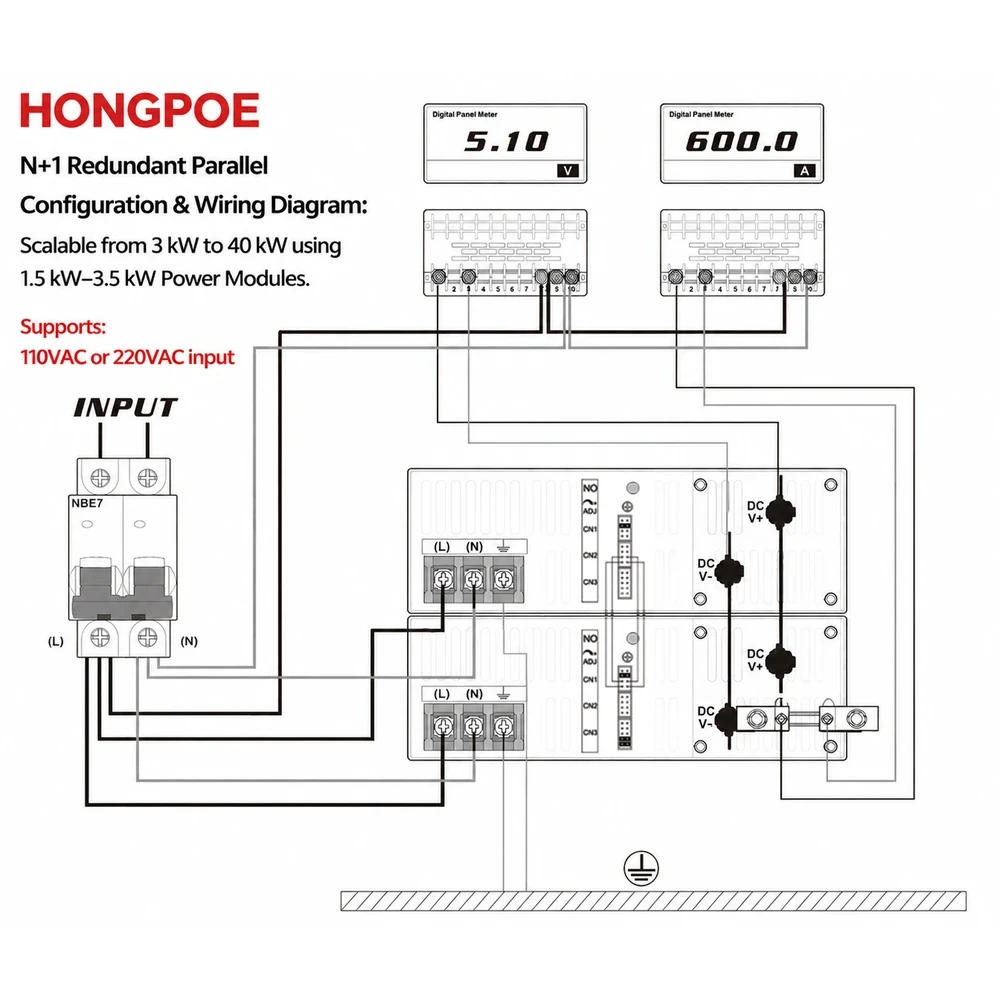

N+1 Parallel Redundancy: Supports multiple power supplies in parallel.

You will be redirected to our official online store www.hongpoepower.com to complete your order and secure payment.

VOLTAGE CATALOG

Select an output voltage configuration to view the full SE-7000 specifications.

20 standard output voltage options

SPECIFICATIONS

Model	SE-7000
Rated Power	7000W
AC Input	110VAC or 220VAC, single-voltage input
Output Voltage	12–30V / 36–72V / 85–200V / 250–400V DC
Output Current	17.5A–580A
Efficiency	87%–92%
Control Methods	0–5V · PWM · PLC · ON/OFF
Voltage Adjustment	0–100%
Current Adjustment	0–105%

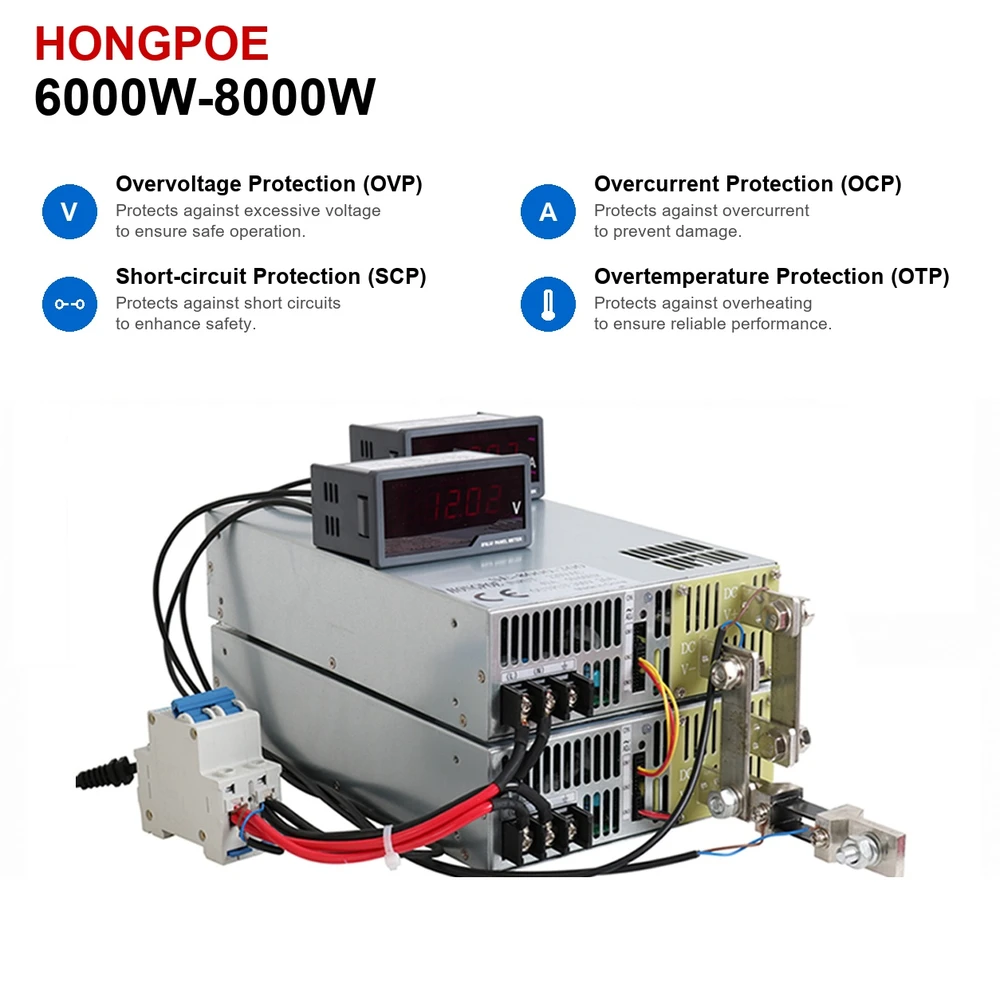

Protection	OVP · OCP · SCP · OTP
Cooling	Forced-air cooling
Dimensions	110VAC / 220VAC input: 280 × 180 × 130 mm
Weight	110VAC / 220VAC input: 9.0 kg
Operating Temperature	-15°C to 65°C

PLCs, robotics, CNC equipment, motors, sensors, actuators, and industrial control systems.

Battery charging, LiFePO4 battery packs, charging equipment, and energy storage systems.

LED strips, LED modules, advertising displays, and high-power LED equipment.

Engineering testing, laboratory equipment, product development, education, and system verification.

Telecom equipment, surveillance systems, Peltier systems, refrigeration equipment, and other high-power DC applications.

SERIES

Tell us your required input voltage, output voltage, current and control method.
